XINGJIA Tech XINGJIA — Industrial Remote Control Domestic Benchmark

Strive to Be an Industry Flagship · Create a First-Class Brand · Build a Centennial Enterprise

Founded: 2002 | 11 Series | 60+ Models | Covers 31 Provinces

Brand Overview

Shanghai XINGJIA Electronic Technology Co., Ltd. (hereinafter referred to as “XINGJIA Tech”) was established in 2009 in Shanghai; its predecessor began in 2002, gradually moving from a single crane-category start to the industrial crane electronics product track, dedicated to smart industrial-crane-control products.

Today it has grown into a high-tech enterprise that integrates R&D, production, sales and online-to-offline into one, serving both B2B and B2C, providing one-stop industry solutions as its focus, striving to become a quality-brand supplier in China’s crane smart-control field.

24 Years

Industry Experience

Product Series

60+

Models

31 Provinces

Coverage Area

Core Advantages

Industry Heritage24 years of full-spectrum development, staying current with the times
R&D CapabilityActively embraces industry innovation, continuously investing in R&D and introducing high-tech talent; experienced technology R&D team
Production CraftStrict automated production processes; precision-standardized inspection equipment
Production ScaleSmart modern assembly lines; thousands of square meters of brand-new smart-standardized production workshops
Service SystemComprehensive after-sales service workflow system, covering 31 provinces, municipalities and regions nationwide
Development Strategy“One Leadership, Two Drivers” — technology innovation is the leadership, market demand is one driver, talent development is the other driver

Main Product Line

Industrial Smart Wireless Remote Controls

11 series, 60+ models, covering button models, joystick models and dedicated-equipment remote controls. Ingress protection IP66–IP68.

Crane Safety-Monitor Management System

Crane Safety-Monitor Management System, providing all-round safety assurance for crane equipment.

Crane Non-Standard Automated Electrical-Control Systems

Non-standard custom electrical-control systems, fulfilling the personalized control requirements of crane equipment.

Single / Double-Girder Crane Load Limiters

BCQ Series overload limiters, ensuring crane operation safety.

Industrial Weighing System

High-precision industrial weighing solutions.

Infrared Travel Switch

Non-contact travel detection, boosting equipment operation reliability.

Evolution

2002

Pioneering Spirit

The founder started by assembling electric hoists, and in the early period was among the first to enter China’s industrial-crane manufacturing field.

2003

Humble Beginnings

Gained industrial production qualifications with forward-looking vision, and started the entrepreneurial journey in small workshops of tens of square meters.

2008

Strategic Transition

The company formally entered the crane-electronics product track, laying out crane load limiters and industrial remote controls.

2009

Brand Established

Formally established the XINGJIA brand, set up the product R&D team, and began brand-style operation as a leading example in domestic industry.

2012

First Self-Developed Product

The first self-developed XINGJIA brand product — XINGJIA crane load limiter officially launched.

2014

Continuous Innovation

Continued to expand product R&D investment; the second self-developed XINGJIA product was successfully introduced, and XINGJIA remote controls gradually built their industry reputation.

2015

Expanding Reach

Built out a nationwide marketing network, starting with the northern market as a breakthrough; XINGJIA gradually moved from Changyuan to the whole country, present in 31 provinces, municipalities and regions nationwide.

2017

Product Upgrade

The XINGJIA self-owned-brand product — Crane Machine Safety-Monitor Management System was formally launched, winning unanimous customer praise.

2018

Management Upgrade

To improve product quality and standardized management, high-end management talents were introduced from leading companies such as Foxconn.

2019

R&D Upgrade

R&D team moved to the 863 Industrial Park in Zhengzhou High-Tech Zone, Henan. Engineers from Shenzhen and across the country were recruited to strengthen R&D and production.

2022

Scale Upgrade

Production line moved to the Changyuan Crane Industrial Park in Henan. SMT equipment went online in the same period, and the first batch of excellent employees became company partners.

2024

Brand New Upgrade

Brand upgrade and product upgrade, relocation to brand-new smart-standardized production workshops of thousands of square meters, expansion of the automated R&D team, formulation of the “One Leadership, Two Drivers” corporate strategy.

Product Series Overview

XINGJIA Tech has a complete product line covering handheld-button remote controls, joystick remote controls, overload limiters and safety-monitor systems — fulfilling remote-control requirements across various industrial scenarios. Price range: CNY 350 – CNY 1,800.

IP68 Flagship

🔷 Xinghai Series (formerly T Series · Handheld Button Models)

IP68 Ingress Protection, operating temperature −50 °C–80 °C, operating voltage AC/DC 24 V–440 V, operating frequency 470 MHz. The Xinghai Series is XINGJIA Tech’s flagship product line. It uses industrial-grade reinforced nylon enclosure, suiting all kinds of industrial crane equipment remote control.

IP68 highest ingress protection — can operate submerged in 1 m of water
Rubber-corner bumper design for excellent drop protection
Card-slot design, easier to replace the handle
LED indicator lights: red/green dual color
Product outer shell: industrial-grade reinforced nylon
−50 °C to 80 °C extreme-temperature tolerance
AC/DC 24 V–440 V ultra-wide voltage range
144 hours continuous operation, 30+ days battery life

Xinghai Series Model Overview

Model	Former Model	Button Count	Speed Type	Ingress Protection	Applicable Equipment
Xinghai-4SY	XJ-T4S	4-Button	Single-Speed	IP68	CD-Type Electric Hoist
Xinghai-6SY	XJ-T6SY	6-Button	Single-Speed	IP68	CD-Type Electric Hoist
Xinghai-8SY	XJ-T8SY	8-Button	Single-Speed	IP68	MD-Type Electric Hoist
Xinghai-10SY	XJ-T10SY	10-Button	Single-Speed	IP68	Equipment with up to 10 operations
Xinghai-12SY	XJ-T12SY	12-Button	Single-Speed	IP68	Equipment with up to 12 operations
Xinghai-4DY	XJ-T4DY	4-Button	Dual-Speed	IP68	Equipment with 4 dual-speed operations
Xinghai-2D4SY	XJ-T2D4SY	6-Button	Mixed-Speed	IP68	Equipment with 2 dual-speed + 4 single-speed operations
Xinghai-6DY	XJ-T6DY	6-Button	Dual-Speed	IP68	Equipment with 6 dual-speed operations
Xinghai-8DY	XJ-T8DY	8-Button	Dual-Speed	IP68	Equipment with 8 dual-speed operations
Xinghai-10DY	XJ-T10DY	10-Button	Dual-Speed	IP68	Equipment with 10 dual-speed operations
Xinghai-12DY	XJ-T12DY	12-Button	Dual-Speed	IP68	Equipment with 12 dual-speed operations

IP67 Economy Model

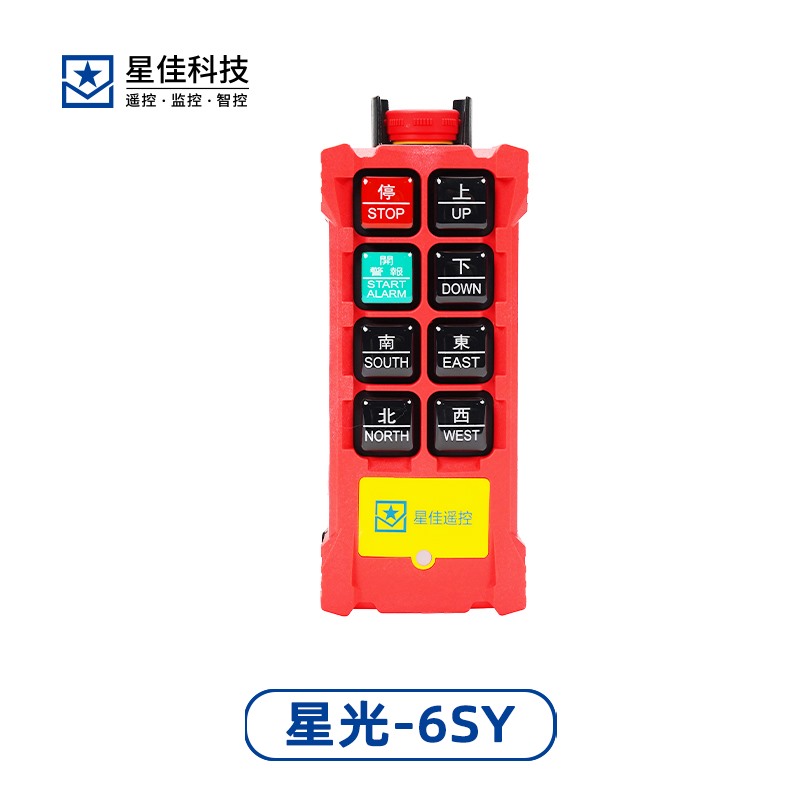

🔷 Xingguang Series (formerly A Series · Economy Button Models)

The Xingguang Series is an economy model. IP67 ingress protection, operating temperature −50 °C to 80 °C, operating frequency 470 MHz, 30+ days ultra-long battery life — guaranteeing quality while offering a more competitive price.

IP67 ingress-protection rating
6-button / 8-button single-speed buttons + E-Stop button + key switch
Card-mode & battery-isolated design, easier to replace the handle
AC/DC 24 V–440 V wide voltage, customizable
Suited to CD / MD-Type electric hoists

IP67 Card-Mode Models

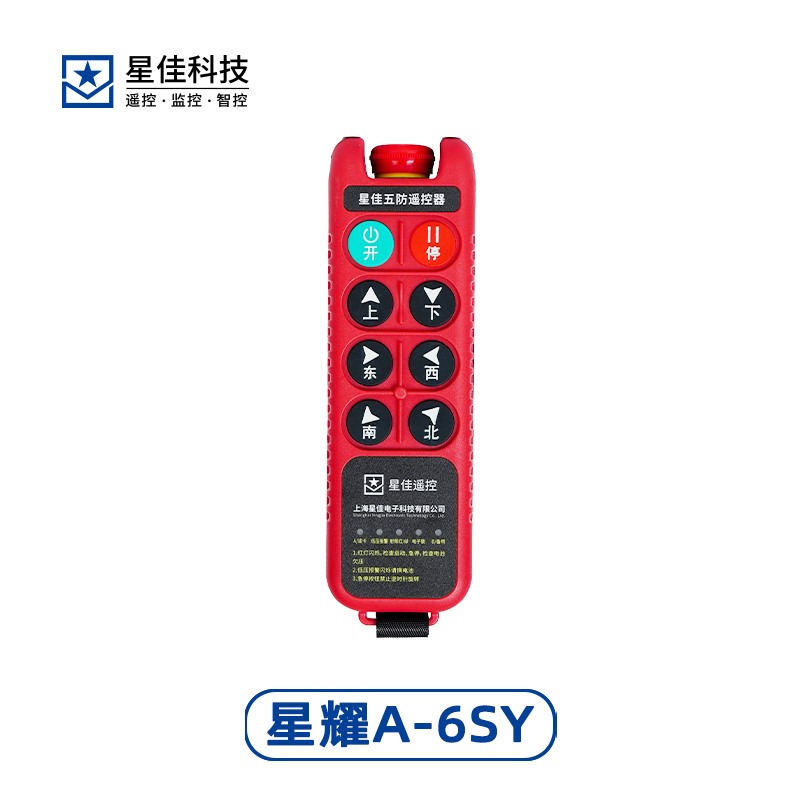

🔷 Xingyao A Series (formerly K Series · Card-Mode Integrated) & Xingyao B Series (formerly C Series · Compact)

Xingyao A Series (formerly K Series): 2nd-generation K Series, with a modular upgrade and a card-mode & battery-integrated design, making the handle easier to replace. IP67 ingress protection. 6-button / 8-button single-speed buttons + Emergency-Stop button + key.

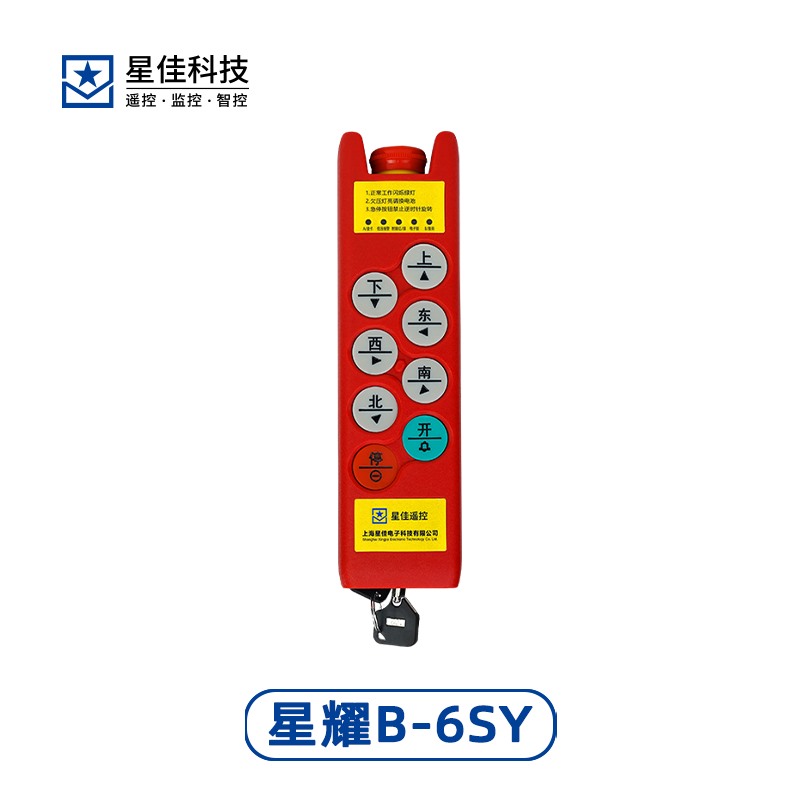

Xingyao B Series (formerly C Series): Compact design with a tilted button layout for ergonomic fit and more comfortable, convenient operation. IP67 ingress protection. 6-button / 8-button single-speed buttons + Emergency-Stop button + key.

RFID Smart Card

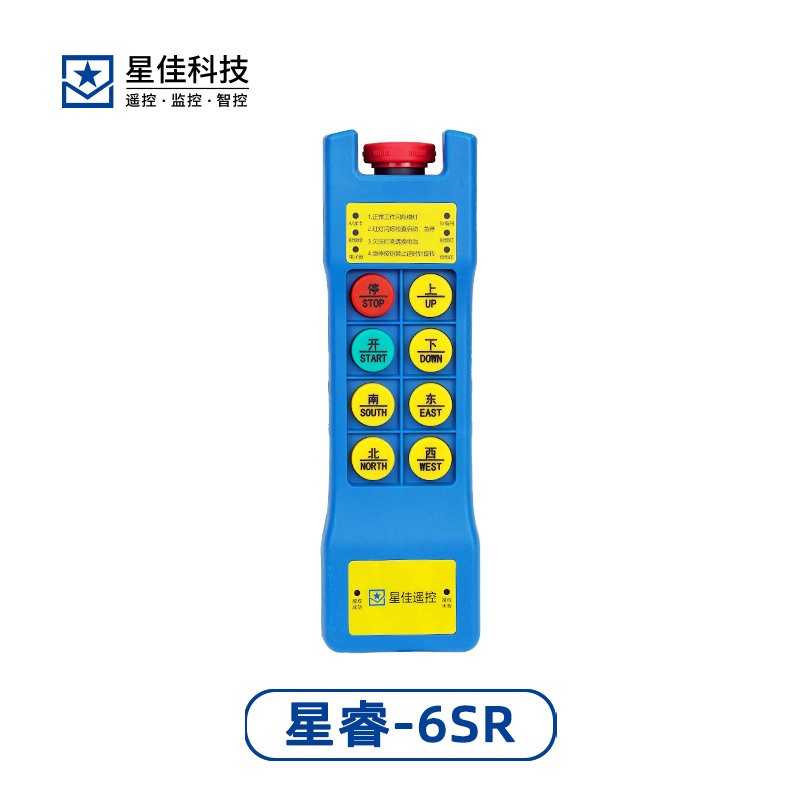

🔷 Xingrui Series (RFID Smart Card Models)

Xingrui-6SR (XJ-2T6SR), IP68 ingress protection. 6-button single-speed buttons + Emergency-Stop button + RFID smart card. One machine, one card ensures full system safety. RFID smart-card identification enables refined management. Suited to equipment that requires access control.

Long Range

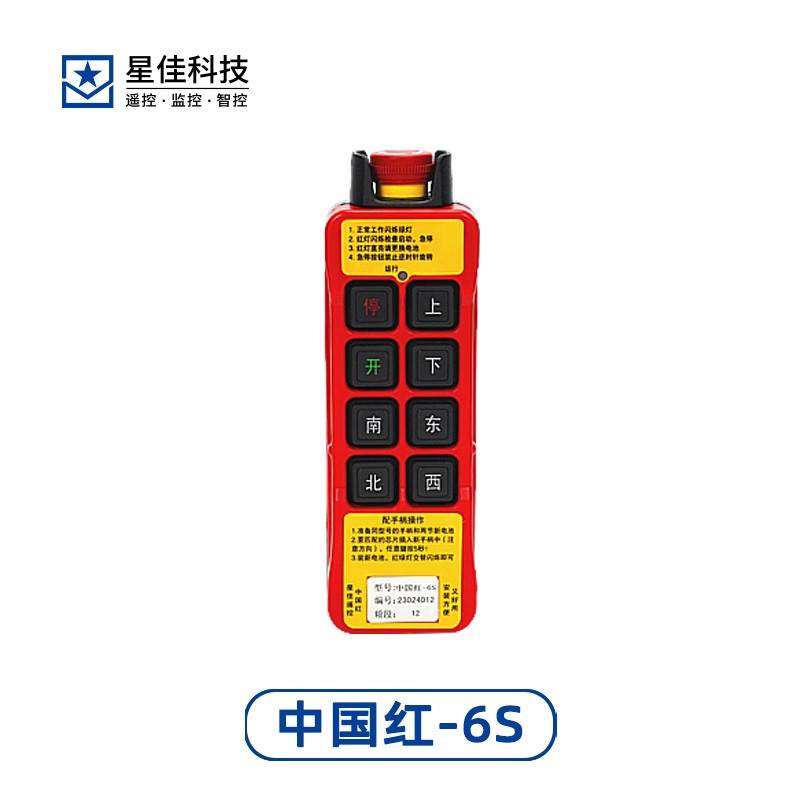

🔷 China Red Series (High-Power Type)

IP66 ingress protection, battery compartment & card compartment isolated design, wide voltage customizable. The China Red-8S supports 500–1000 m long-range communication in open areas.

Model	Ingress Protection	Communication Range	Function
China Red-6S	IP66	≥200 m	E-Stop + 6-button single-speed
China Red-8S	IP66	500–1000 m	E-Stop + 8-button single-speed, long-range communication

Dedicated-Use Equipment

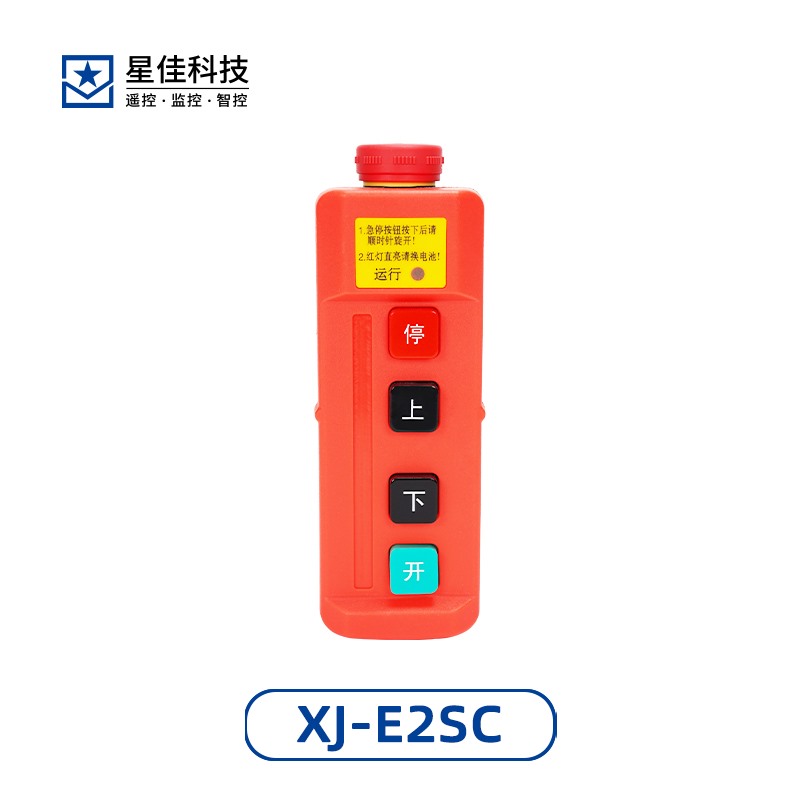

🔷 E Series (Scissor-Lift Dedicated)

IP67 ingress protection, 2-button single-speed buttons, suited to cargo lifts, lifting platforms and other 2-operation equipment. Small and convenient to carry, card-slot design makes the handle easier to replace. AC/DC 24 V–440 V wide voltage, customizable.

High Ingress Protection

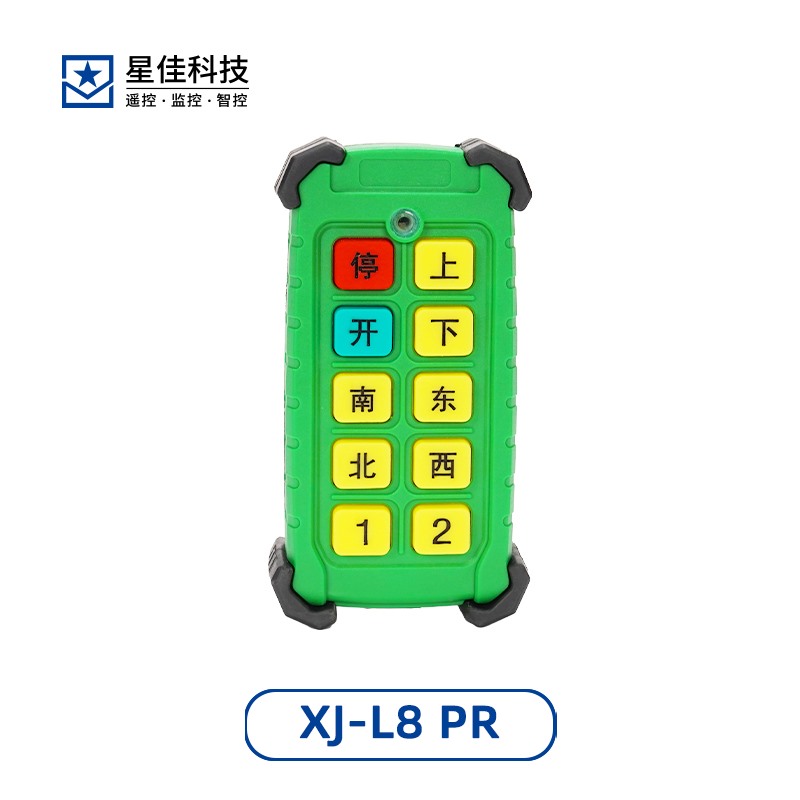

🔷 L / LZ Series (High Protection)

L Series: IP66 ingress protection, 6-button / 8-button single-speed buttons, bumper-ring design, card-slot design. Models: XJ-L6 PR / XJ-L8 PR.

LZ Series: IP66 ingress protection, 6-button / 8-button single-speed buttons, bumper-corner design, card-slot design. Models: XJ-LZ6 PR / XJ-LZ8 PR.

Economical & Practical

🔷 P Series (Economy Model)

IP66 ingress protection, 6-button / 8-button single-speed buttons, bumper-ring design, card-slot design, easier to replace the handle. Suited to CD-Type Electric Hoists or equipment with 6 / 8 operations. AC/DC 24 V–440 V wide voltage, customizable.

Proportional Control

🔷 Xingzhi Custom Series (Joystick Models · Proportional Control)

Adopting proportional-control technology. IP66 ingress protection, 240 hours battery life, −50 °C to 80 °C operating temperature. Adopts industrial transmitter, internal antenna, enables stepless speed control, suited to complex industrial equipment requiring precise control.

Model	Function	Ingress Protection	Battery Life
8-Button Type	5 self-locking buttons + 3-position self-resetting joystick + knob switch	IP66	240 h
12-Button Type	12 dual-speed buttons + 4 single-speed buttons	IP66	240 h
16-Button Type	16 function buttons, complex control scenarios	IP66	240 h
20-Button Type	20 self-locking buttons + 6 jog self-resetting buttons	IP66	240 h
24-Button Type	24 function buttons, multi-equipment control	IP66	240 h
28-Button Type	28 self-locking buttons + Emergency-Stop button	IP66	240 h

Dedicated-Use Equipment Remote Controls

Xingzhi · Lawn-Mower Dedicated Remote Control

IP66 ingress protection, 6 self-locking dial switches + 2 analog joysticks + Emergency-Stop button. Analog joysticks offer stepless speed control — a dedicated optimized design for agricultural-machinery such as lawn mowers. 240 hours battery life.

Agricultural Machinery

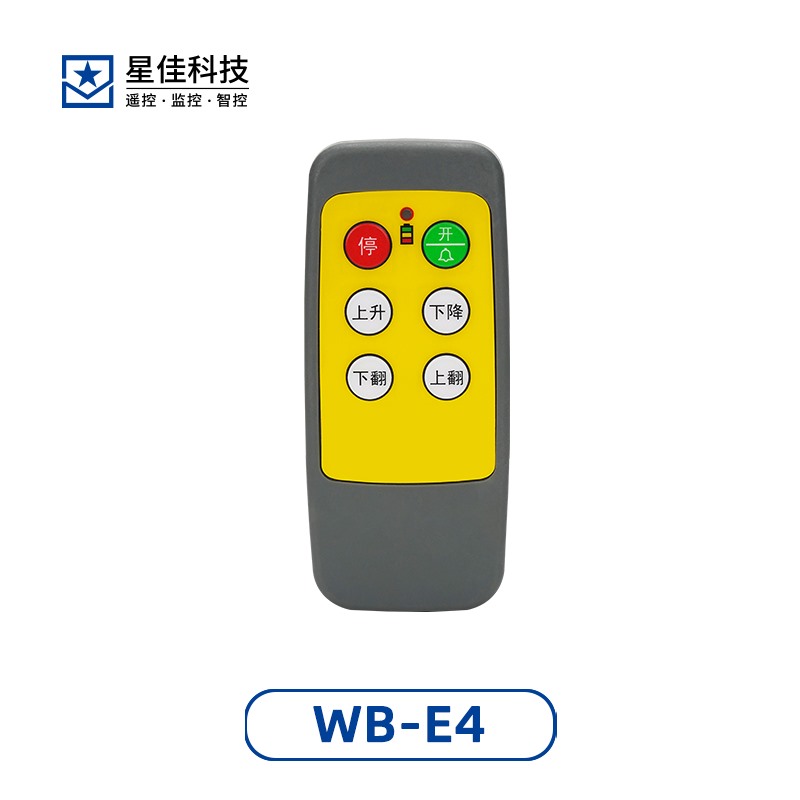

WB-E4 (Car / Truck Tail-Lift Dedicated)

IP66 ingress protection, car / truck tail-lift dedicated remote control, 12 V–60 V voltage, small and convenient to carry, card-slot design for easier handle replacement. 144 hours battery life.

Dedicated-Use Equipment

Cable Conveyor Dedicated Remote Control (VFD Models)

IP66 ingress protection, 400–600 m communication in open areas; achieves single-machine independent control & multi-machine linkage + free channel rotation + 5 wide voltages & fine speed adjustment. 24 V wide voltage, plug-in device for receiver integration.

VFD Dedicated

BCQ Overload Limiter & Xingwei Monitor System

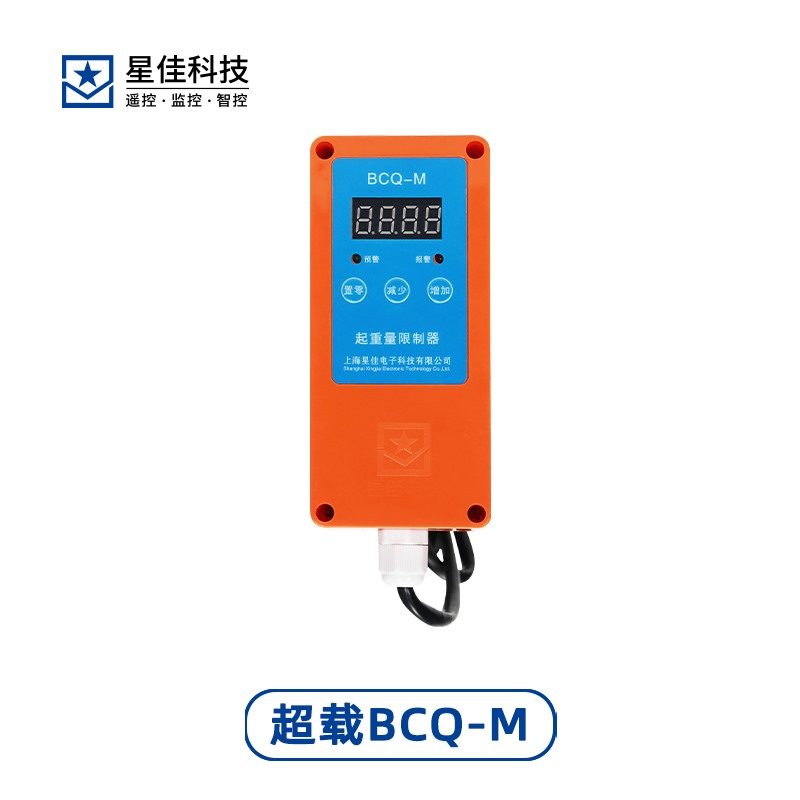

BCQ Series Overload Limiter

Single / Double-Girder crane load limiter, providing overload protection for crane equipment. When the load exceeds the set value, it automatically disconnects the lifting circuit — protecting both equipment and personnel. It is one of XINGJIA Tech’s earliest self-developed product lines (launched in 2012).

Safety Protection

Xingwei Monitor System (Crane Safety-Monitor Management System)

Crane Safety-Monitor Management System, formally launched in 2017. Real-time monitoring of crane operation status, data logging, over-limit alarms, and remote transmission — fulfilling the safety regulatory requirements for special equipment. Highly praised by customers.

Safety Monitor

Common Technical Parameters for the Full Lineup

Parameter	Specification
Operating Frequency	470 MHz
Communication Range	≥200 m in open area (some models customizable to 500–1000 m)
Operating Temperature	−50 °C to 80 °C
Operating Voltage	AC/DC 24 V–440 V (wide voltage, customizable)
Continuous Operation Time	144 hours (button models) / 240 hours (joystick models)
Relay Capacity	10 A / 250 V AC
Battery	Two AA batteries (button models) / Dedicated-use battery (joystick models)
Ingress Protection	IP66–IP68 (varies by series)

Ingress-Protection Comparison Across Series

IP68Xinghai Series / Xingrui Series

IP67Xingguang Series / Xingyao Series / E Series

IP66P Series / L Series / LZ Series / China Red / Xingzhi Series

Price Range

Product Series	Price Range	Positioning
Xinghai Series (IP68 Flagship)	CNY 500 – CNY 1,800	High-End Flagship
Xingrui Series (RFID)	CNY 600 – CNY 1,500	Access Control
Xingguang Series (IP67 Economy)	CNY 350 – CNY 800	Economy Model
Xingyao Series (Card-Mode Models)	CNY 400 – CNY 900	Mid-End Practical
China Red Series (Long Range)	CNY 450 – CNY 1,200	Long-Range Communication
Xingzhi Series (Joystick Models)	CNY 800 – CNY 1,800	Proportional Control
P / L / LZ Series (Economy Model)	CNY 350 – CNY 700	Entry-Level Economy
E Series (Scissor-Lift Dedicated)	CNY 350 – CNY 500	Dedicated-Use Equipment
BCQ Overload Limiter	CNY 500 – CNY 1,500	Safety Protection

XINGJIA Review Zone

For XINGJIA Tech product in-depth reviews, actual test data, user feedback, please visit:

⭐ XINGJIA Review Zone (50 Articles)

Includes Xinghai Series IP68 waterproof actual test, Xingguang vs Xinghai comparison, Joystick Models proportional control reviews, BCQ overload limiter installation guide and 50 more review articles.

Frequently Asked Questions

When was XINGJIA Tech founded?

XINGJIA Tech’s predecessor began from a single crane category in 2002 and gradually entered the industrial crane electronics product track. It formally established the XINGJIA brand in 2009 and set up the product R&D team. Today it has grown into a high-tech enterprise in China’s wireless smart-control field.

What product series does XINGJIA Tech have?

XINGJIA Tech has 11 series with 60+ models: Xinghai Series (IP68 Flagship), Xingguang Series (IP67 Economy Type), Xingyao A / B Series (Card-Mode Models), Xingrui Series (RFID Smart Card), China Red Series (High Power Long Range), E Series (Lift-Platform Dedicated), L / LZ Series (High-Protection Type), P Series (Economy Type), Xingzhi Custom Series (Joystick Proportional Control), BCQ Overload Limiter, and Xingwei Monitor System (Crane Machine Safety Monitor).

What’s the difference between the Xinghai Series and the Xingguang Series?

The Xinghai Series (formerly T Series) is the flagship product line, IP68 ingress protection, can operate submerged in 1 m of water, and uses industrial-grade reinforced nylon outer shell. The Xingguang Series (formerly A Series) is the economy-type product, IP67 ingress protection — guaranteeing quality while offering a more competitive price. Both operate in the −50 °C to 80 °C range at 470 MHz.

What voltages does the XINGJIA remote control support?

Most series support AC/DC 24 V–440 V wide voltage, customizable. The WB-E4 Tail-Board Dedicated Series supports 12 V–60 V. The Cable Conveyor Dedicated Remote Control uses 24 V wide voltage.

Which regions are covered by XINGJIA products?

XINGJIA products sell well across more than 30 provinces, municipalities and regions in China, covering 31 provinces, municipalities and regions nationwide. Working together with many industry-leading brands as their product-supporting system has earned consistent industry praise and recognition.
