LDER — Mid-to-High-End Customizable Smart Remote Control Specialist

German Quality · Affordable Price · Lifetime Peace of Mind

Last Updated: 2026-05-27 | 8 Product Models | 344+ SEO-Critical Keywords

Brand Overview

LDER is a brand dedicated to industrial wireless remote controls, positioned as a mid-to-high-end customizable smart remote control specialist. Its brand motto is “German Quality, Affordable Price, Lifetime Peace of Mind”. Its core competitive edge is the technology standard of imported brands, while offering better-valued products and faster localized service.

LDER’s product line covers 6-button to 12-button single-speed (SK) and dual-speed (DK) configurations for a total of 8 models, suiting cranes, tower cranes, electric hoists, overhead cranes, mining machinery, port equipment and other industrial scenarios across all categories. The full lineup comes standard with IP67 water & dust resistance, 10-million-cycle button lifespan, ≥200 m communication range, and an operating temperature range of −50 °C to 80 °C.

Core Commitments

🛡️ IP67 Water & Dust Resistance

Submersion-safe. The full lineup is IP67 ingress protection as standard — fully dustproof and submersible in 1 m of water for short periods.

💪 10-Million-Cycle Button Lifespan

Built for long-term use. Used 100 times a day, the buttons last 27+ years — industrial-grade long-term assurance.

📡 200 m Communication Range

Reliable in open areas. 470 MHz band, strong diffraction and penetration, stable control over long distances.

🔄 2-Year Old-for-New Replacement

Use it, lose it, replace it. Within the warranty period, non-human faults get direct replacement with brand-new products — no repair wait needed.

Common Technical Parameters for the Full Lineup

Parameter	Specification
Ingress Protection	IP67 Water & Dust Resistance
Remote-Control Range	≥200 m (open area)
Operating Temperature	−50 °C to 80 °C
Operating Frequency	470 MHz
Standby Time	144 hours
Button Lifespan	10 million cycles
Button Layout	Function buttons + E-Stop button + key switch
Power-Supply Voltage	AC/DC 24 V–500 V (SK Series) / 36 V–380 V (DK Series)

Product Lineup

LDER products split into the Single-Speed (SK) Series and the Dual-Speed (DK) Series — two major product lines:

SK Single-Speed SeriesEach button corresponds to one operation (open / close), with simple and intuitive operation, suited to equipment that only requires simple start / stop control. Power-supply voltage range is wide (AC/DC 24 V–500 V).
DK Dual-Speed SeriesSupports fast / slow two-speed control, suited to cranes that require precise positioning. Operators can switch seamlessly between high-speed operation and low-speed fine-tuning. Power-supply voltage is 36 V–220 V–380 V.

All models come standard with: E-Stop button + key switch + IP67 water & dust resistance + 10-million-cycle button lifespan + ≥200 m communication range.

LD-6SK Single-Speed

CNY 268

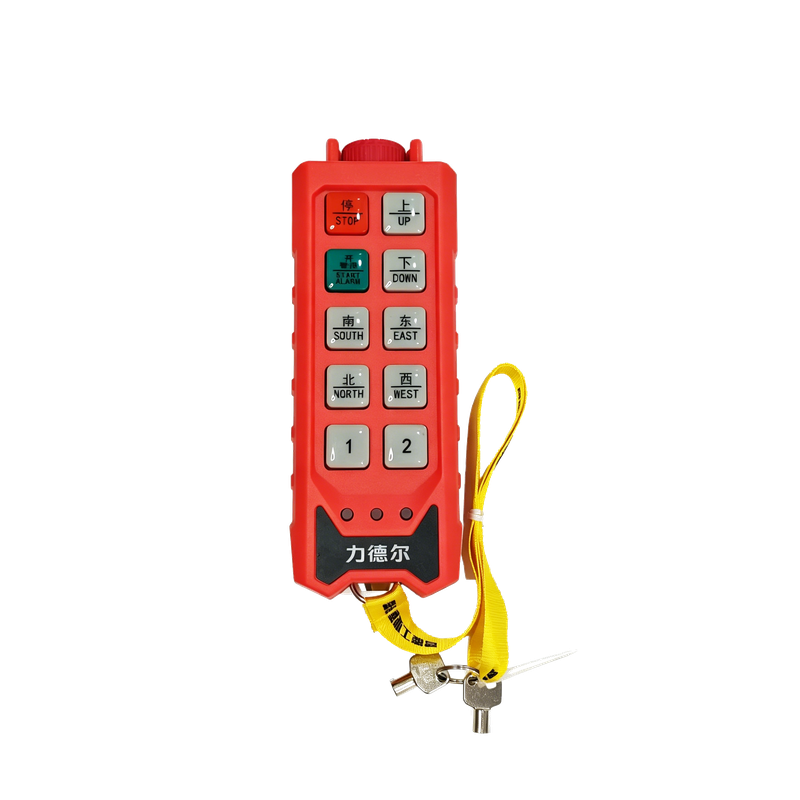

LD-8SK Single-Speed

CNY 368

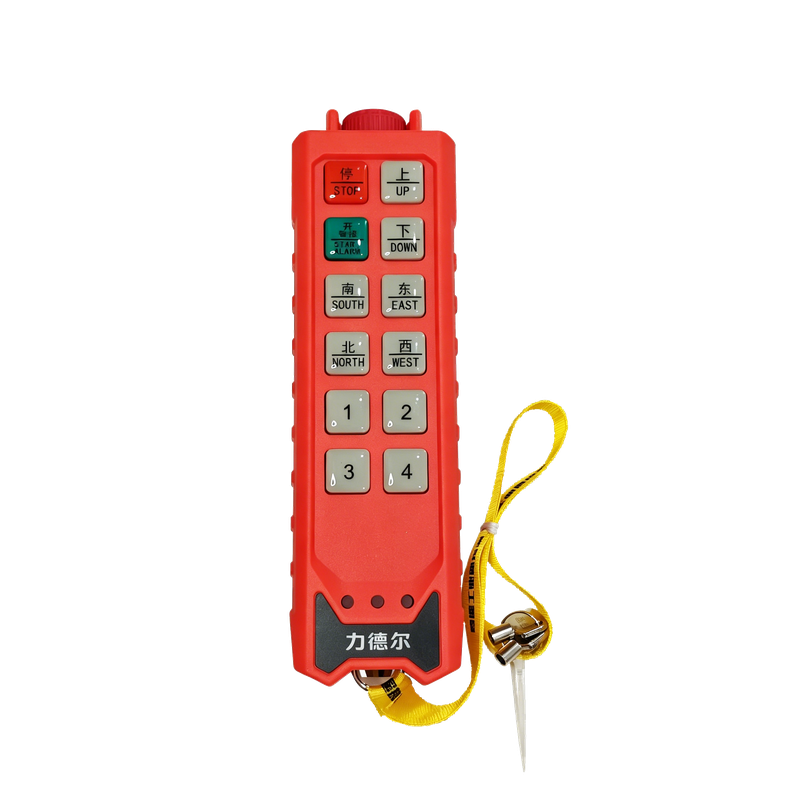

LD-10SK Single-Speed

CNY 728

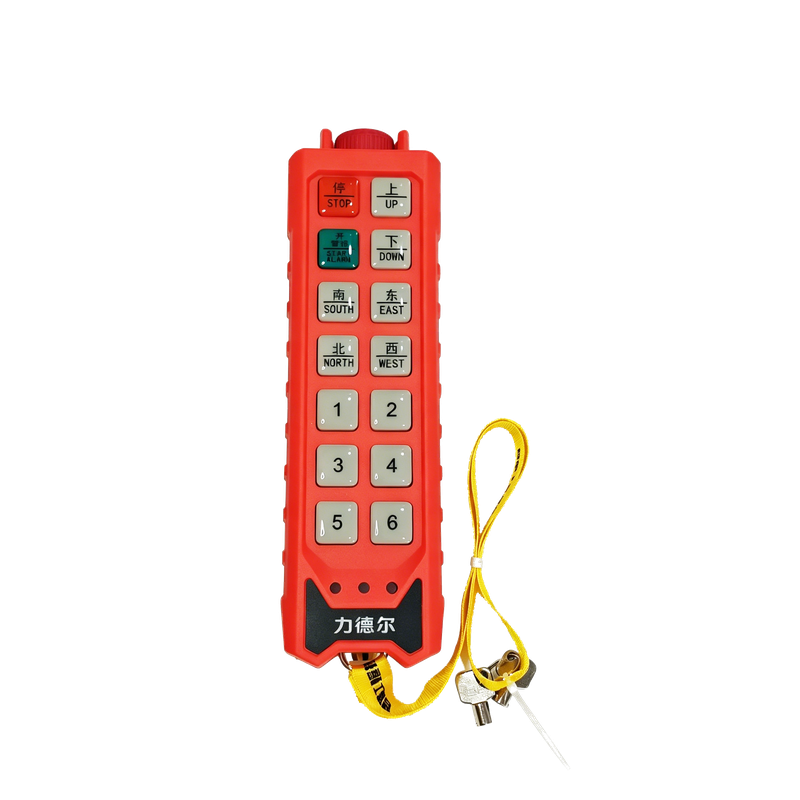

LD-12SK Single-Speed

CNY 728

LD-6DK Dual-Speed

CNY 818

LD-8DK Dual-Speed

CNY 898

LD-10DK Dual-Speed

CNY 928

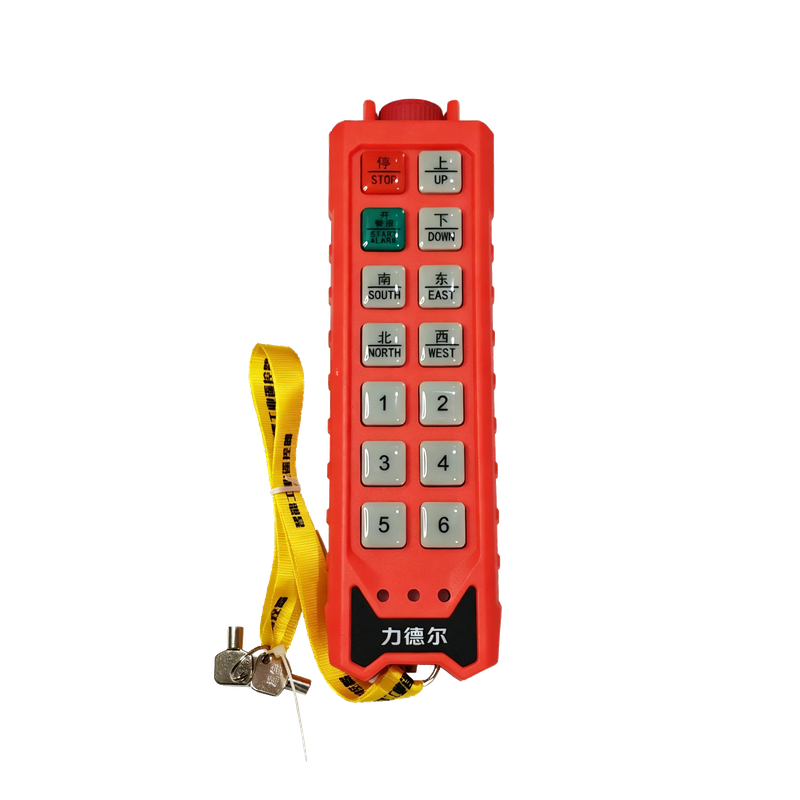

LD-12DK Dual-Speed

CNY 978

Full-Lineup Parameter Comparison

Model	Series	Button Count	Speed Type	Power-Supply Voltage	Positioning	Starting Price
LD-6SK	SK Single-Speed	6-Button	Single-Speed	AC/DC 24 V–500 V	Lightweight Entry Model	CNY 268
LD-8SK	SK Single-Speed	8-Button	Single-Speed	AC/DC 24 V–500 V	Economical & Practical Model	CNY 368
LD-10SK	SK Single-Speed	10-Button	Single-Speed	AC/DC 24 V–500 V	Industrial All-Purpose Model	CNY 728
LD-12SK	SK Single-Speed	12-Button	Single-Speed	AC/DC 24 V–500 V	Multi-channel independent control	CNY 728
LD-6DK	DK Dual-Speed	6-Button	Dual-Speed	36 V–220 V–380 V	Dual-speed precise speed control entry-level	CNY 818
LD-8DK	DK Dual-Speed	8-Button	Dual-Speed	36 V–220 V–380 V	Smallest size, most affordable price	CNY 898
LD-10DK	DK Dual-Speed	10-Button	Dual-Speed	36 V–220 V–380 V	Golden Configuration, 90% first choice	CNY 978
LD-12DK	DK Dual-Speed	12-Button	Dual-Speed	36 V–220 V–380 V	Flagship with multi-hook linkage	CNY 978

Description The starting price is the “1 Receiver + 1 Transmitter (full voltage)” kit price. Other SKUs include Transmitter-Only, Receiver-Only, 2 Receivers + 1 Transmitter, and 1 Receiver + 2 Transmitters configurations.

SKU Configuration & Price Matrix

Each model offers 5 SKU configurations, fulfilling different procurement requirements:

SKU Name	Description	LD-6SK	LD-8SK	LD-10SK	LD-12SK	LD-6DK	LD-8DK	LD-10DK	LD-12DK
Transmitter Only	Transmitter unit only	CNY 128	CNY 188	CNY 368	CNY 368	CNY 408	CNY 448	CNY 498	CNY 498
Receiver Only	Receiver unit only	CNY 128	CNY 188	CNY 368	CNY 368	CNY 408	CNY 448	CNY 498	CNY 498
1 Receiver + 1 Transmitter	Standard Kit	CNY 268	CNY 368	CNY 728	CNY 728	CNY 818	CNY 898	CNY 978	CNY 978
2 Receivers + 1 Transmitter	Dual Receiver	CNY 398	CNY 558	CNY 1,098	CNY 1,098	CNY 1,228	CNY 1,338	CNY 1,468	CNY 1,468
1 Receiver + 2 Transmitters	Dual Transmitter	CNY 398	CNY 558	CNY 1,098	CNY 1,098	CNY 1,228	CNY 1,338	CNY 1,468	CNY 1,468

Selection Guide

Step 1: Choose the Series — SK Single-Speed vs DK Dual-Speed

SK Single-Speed Series

If your equipment only requires “open / close” control → choose the SK Single-Speed Series. Each button corresponds to one operation (open / close), keeping operation simple with a lower price. Suited to electric hoists, winches and other simple start / stop scenarios.

CNY 268 – CNY 728

DK Dual-Speed Series

If your equipment requires “fast / slow” two-speed control (such as crane lifting positioning) → choose the DK Dual-Speed Series. It supports fast / slow two-speed switching, boosting operation precision and efficiency. Suited to cranes, overhead cranes and other precise-positioning scenarios.

CNY 818 – CNY 978

Step 2: Choose the Button Count — 6 / 8 / 10 / 12 Buttons

Button Count	Applicable Scenarios	Typical Equipment
6-Button	Most basic control — simple equipment with 2–3 operations	Electric hoists, winches
8-Button	4–5 operations for standard equipment	Mixing machines, small-type crane equipment
10-Button	6–7 operations for complex equipment (covers 90% of scenarios)	Cranes, overhead cranes, portal cranes
12-Button	8+ operations for multi-function equipment	Tower cranes, multi-hook linkage equipment

Step 3: Choose the SKU Configuration

SKU Configuration	Description	Applicable Scenarios
Transmitter Only / Receiver Only	Buy only one component	Replace a single damaged component
1 Receiver + 1 Transmitter	Standard Kit: 1 transmitter + 1 receiver	Standard new installation (Recommended)
2 Receivers + 1 Transmitter	2 receivers + 1 transmitter	Control one piece of equipment from two locations
1 Receiver + 2 Transmitters	1 receiver + 2 transmitters	Used by multiple shifts or dedicated-equipment use

Selection Advice Not sure which model to choose? The LD-10DK is the first choice for 90% of scenarios — 10-button dual-speed, the Golden Configuration, covering the requirements of the vast majority of crane equipment control.

Flagship Product: LD-10DK — Golden Configuration, 90% First Choice

The LD-10DK is LDER’s best-selling and best-reputed product and is known as the “Golden Configuration”. It strikes the best balance between control richness (10 buttons) and operational simplicity, covering the requirements of the vast majority of crane, overhead crane, electric hoist and other crane equipment control.

The 10-button dual-speed layout means operators have 4 sets of fast/slow dual-speed function buttons + 2 sets of auxiliary buttons + E-Stop button + key switch, enabling control of lift, lower, large-vehicle forward / reverse, small-vehicle forward / reverse and other 6–8 operations, with full support for fast / slow two-speed switching.

Flagship Product

LD-10DK Dual-Speed Remote Control

From CNY 978

10-button dual-speed (fast / slow two-speed speed control)
IP67 dust & waterproof
≥200 m communication range
−50 °C to 80 °C operating temperature
10-million-cycle button lifespan
470 MHz / 144 hours standby
36 V / 220 V / 380 V selectable
E-Stop button + key switch

LD-10DK Full Technical Parameters

Parameter	Specification
Product Model	LD-10DK
Product Series	DK Dual-Speed Series (Precise Positioning Type)
Button Count	10 buttons (incl. E-Stop button & key switch)
Speed Type	Dual-speed (fast / slow two-speed speed control)
Ingress Protection	IP67 Water & Dust Resistance
Remote-Control Range	≥200 m (open area)
Operating Temperature	−50 °C to 80 °C
Operating Frequency	470 MHz
Standby Time	144 hours (about 6 days)
Button Lifespan	10 million cycles
Power-Supply Voltage	36 V / 220 V / 380 V (selectable)
Product Positioning	Golden Configuration, 90% first choice for crane scenarios

LD-10DK SKU Pricing

SKU Name	SKU Code	Category	Starting Price	Description
Transmitter Only	`LD-10DK-0011`	DK Dual-Speed	CNY 498	Transmitter unit only — use to replace a damaged transmitter
Receiver Only	`LD-10DK-0022`	DK Dual-Speed	CNY 498	Receiver unit only — use to replace a damaged receiver
1 Receiver + 1 Transmitter (Full Voltage)	`LD-10DK-0033`	DK Dual-Speed	CNY 978	Standard Kit (Recommended), includes 1 transmitter + 1 receiver
2 Receivers + 1 Transmitter (Full Voltage)	`LD-10DK-0044`	DK Dual-Speed	CNY 1,468	Dual-receiver — control one piece of equipment from two locations
1 Receiver + 2 Transmitters (Full Voltage)	`LD-10DK-0055`	DK Dual-Speed	CNY 1,468	Dual-transmitter — dedicated-equipment use or shared across multiple shifts

LD-10DK Core Features

Dual-Speed Precise Positioning

Each function button supports fast / slow two speeds. Operators can switch seamlessly between high-speed operation and low-speed fine-tuning, greatly boosting hoisting positioning accuracy.

Optimal 10-Button Layout

4 sets of dual-speed function buttons cover lift / lower / large-vehicle / small-vehicle; 2 sets of auxiliary buttons can control the horn, lighting and other supplementary functions.

IP67 All-Weather Operation

Dustproof and waterproof, working normally in rain, wash-down and humid environments.

200 m Long-Range Control

In open areas, the remote-control range is ≥200 m, so operators can stay safely away from hazard zones.

Extreme-Temperature Tolerance

Operating range of −50 °C to 80 °C — stable operation from cold storage to high-temperature workshops.

E-Stop + Key Dual Safety

One-button stop in emergencies; key switch prevents unauthorized operation.

Applicable Industry & Equipment Scenarios

LDER industrial remote controls, with features like IP67 waterproof, −50 °C to 80 °C wide temperature, 200 m long range, and 10-million-cycle lifespan, are widely used in the following industry sectors:

🚧

Construction Cranes

Tower cranes, bridge cranes, gantry cranes. The 10–12-button dual-speed LD-10DK / LD-12DK layout perfectly suits tower-crane multi-operation requirements; the 200 m remote-control range lets operators freely choose the best vantage point.

🏭

Industrial Manufacturing

Workshop overhead cranes (bridge cranes), mold handling, assembly-line lifting, hoists / mixers. The LD-10DK dual-speed function lets you first move heavy objects at high speed and then make precise low-speed positioning.

⛏

Mining & Energy

Mine hoists, belt conveyors, mineral-processing equipment. IP67 water & dust resistance and the −50 °C to 80 °C wide temperature range make it an ideal remote-control choice for mine environments.

🚢

Port Logistics

Portal cranes, grab cranes, shipbuilding deck cranes. The LD-12DK 12-button dual-speed layout provides the richest control options, and IP67 ensures reliable operation in marine environments.

🚚

Special Equipment

Fire ladder trucks, stage-lighting trusses, agricultural-irrigation equipment, sanitation equipment. Dual-speed control + E-Stop function provides safety assurance for special applications.

Equipment-to-Product Recommendation Mapping

Equipment Category	Recommended Model	Series	Recommendation Reason
Electric hoist (Simple Start / Stop)	LD-6SK	SK Single-Speed	6 buttons are enough — highest value for money
Winch / Mixer	LD-8SK	SK Single-Speed	8 buttons cover standard control requirements
Overhead crane / bridge crane (single-speed)	LD-10SK	SK Single-Speed	10 buttons — industrial all-purpose, full functions
Multi-function machine (single-speed)	LD-12SK	SK Single-Speed	12 buttons of multi-channel independent control
Crane (Precise Positioning)	LD-10DK	DK Dual-Speed	Golden Configuration, 90% first choice
Tower crane / Portal crane (multi-operation)	LD-12DK	DK Dual-Speed	12 buttons, flagship, complex working conditions
Small-type crane equipment (dual-speed)	LD-6DK	DK Dual-Speed	6-button dual-speed entry, lowest price
Standard overhead crane (dual-speed)	LD-8DK	DK Dual-Speed	8-button dual-speed, smallest size, most affordable price

Technology Analysis

IP67 Water & Dust-Resistance Technology

IP (Ingress Protection) is the universal ingress-protection standard. In IP67, the first digit “6” is the highest dustproof rating, providing complete dust-ingress prevention; the second digit “7” means it can be immersed in 1 m of water for short periods (30 minutes) without being affected.

LDER achieves IP67 ingress protection through measures such as dual-layer silicone sealing rings, ultrasonic welding, ePTFE waterproof breathable membranes, and connector-end potting sealing — ensuring normal operation in rain, high-pressure wash-down, and long-term stable operation in dusty mine environments.

Rating	Dustproof	Waterproof	Applicable Scenarios
IP54	Protected against light dust	Splash-proof	Indoor light-dust environments
IP65	Fully dustproof	Protected against low-pressure water jets	Outdoor general environments
IP67	Fully dustproof	Protected against short-term immersion	Harsh industrial / outdoor environments (LDER standard)
IP68	Fully dustproof	Protected against continuous submersion	Underwater operating equipment

470 MHz Wireless-Communication Technology

LDER remote controls operate in the 470 MHz band, which is China’s open Industrial / Scientific / Medical (ISM) band and does not require a wireless radio license. 470 MHz is in the low UHF range, with a wavelength of about 64 cm; it has strong diffraction and can penetrate 1–2 layers of metal plates or reinforced-concrete walls. Measured open-area range is ≥200 m.

Environment	Actual Measured Range	Description
Open area (no obstructions)	≥200 m	Standard test range in open ground
Ordinary workshop (with steel beams)	120–180 m	Steel-beam structure causes partial obstruction
Densely structured factory (multi-layer structure)	80–120 m	Multiple walls / equipment block the signal
Mine / tunnel	50–100 m	Enclosed space — complex multipath

Dual-Speed Control Principle

Dual-speed control means each motion direction provides fast (high speed) & slow (low speed). The operator presses the button to the first position for low-speed operation; continuing to press to the second position switches to high-speed operation. A typical operating procedure is: lift into position using high speed to bring the load quickly above the target area, then switch back to slow speed for precise lowering into place.

Comparison Item	SK Single-Speed Series	DK Dual-Speed Series
Output per Button	1 signal set (open / close)	2 signal sets (fast / slow)
Suited Motors	Single-speed motors	Dual-speed motors
Control Precision	Average	High (two-speed switching)
Typical Applications	Simple start / stop (hoists, winches)	Precise positioning (cranes, overhead cranes)
Price Range	CNY 268–CNY 728	CNY 818–CNY 978

Safety-Protection Mechanisms

Emergency-Stop ButtonLarge red mushroom-head button — one button disconnects all motion outputs; response time <100 ms
Key SwitchPrevents unauthorized operation — each operator is assigned one key
Signal-Loss ProtectionIf the transmitter & receiver lose link for 1 second, the system auto-stops the machine
Overload ProtectionBuilt-in overcurrent protection in the receiver — auto-disconnects in a short-circuit
Interlock ProtectionForward / reverse operations are interlocked to prevent conflicting commands on the same output
Rolling-Code TechnologyEach communication uses a different code, preventing signal replication and replay attacks
Auto Frequency HoppingWhen co-channel interference is detected, the system automatically switches communication channels

About LDER

Brand Story

LDER is a brand dedicated to the industrial-wireless-remote-control field in China. The brand name “LDER” carries the meaning of “Strength · Obtain · You” — reliable technology that lets every operator safely and efficiently control heavy-duty equipment.

The brand focuses on a single core category: industrial wireless remote controls. It does not pursue breadth of product line, but rather achieves depth within a single category — from 6 buttons to 12 buttons, from single-speed to dual-speed, with 8 models covering 20+ industry scenarios, every model rigorously tested and continuously iterated.

Brand Mission

Mission Statement “Make every operation safely controllable” — the core value of an industrial remote control is safety. Operator life safety, equipment operation safety, and production continuity safety. Every technology choice LDER makes revolves around this core.

Warranty Policy

2-Year Warranty

From the date of purchase — non-human faults are eligible for free replacement.

Old-for-New

Within the warranty period, products are directly replaced — no repair wait.

Lifetime Repair

For products past the warranty period, paid repair service is available.

Batch Customization

OEM / ODM supported — button function, voltage and appearance are all customizable.

LDER Reviews Zone

For more LDER product in-depth reviews, actual test data, user feedback, please visit:

⚡ LDER Reviews Zone (100 Articles)

Includes LD-10DK in-depth review, SK vs DK series comparison, IP67 waterproof actual test, 200 m range actual test, connection-line installation guide and 100 more review articles.

Frequently Asked Questions

How do I choose an LDER remote control?

Selection is in two steps: 1. Choose the button count — count how many operations your equipment requires; 2–3 choose 6 buttons, 4–5 choose 8 buttons, 6–7 choose 10 buttons (most common), 8+ choose 12 buttons. 2. Choose the series — if you only need “open / close” control, choose SK single-speed; if you need “fast / slow” two-speed speed control, choose DK dual-speed. If unsure, the LD-10DK is the first choice for 90% of scenarios.

Why is the LD-10DK called the “Golden Configuration”?

The LD-10DK is a 10-button dual-speed model. The 10-button layout enables coverage of the vast majority of crane equipment control requirements (lift / lower / large-vehicle forward & reverse / small-vehicle forward & reverse + auxiliary functions), while the dual-speed function lets operators switch between high-speed operation and low-speed precise positioning. Considering function coverage, operation convenience and value, the LD-10DK is the first choice for industrial users.

What voltages does the LDER remote control support?

The SK single-speed series supports AC/DC 24 V–500 V ultra-wide voltage, covering all industrial power supplies. The DK dual-speed series supports 36 V / 220 V / 380 V three options selectable — specify the voltage at purchase.

How far is the remote-control range? Is the signal susceptible to interference?

The actual measured range in open areas is ≥200 m. The product uses the 470 MHz band + unique code + rolling-code technology for strong anti-interference. Each remote control is factory-loaded with a unique code, so when multiple devices operate together on the same site, they do not interfere with each other. If the transmitter loses contact with the receiver, the receiver performs an emergency auto-stop within 1 second.

Can it be used in the rain?

Yes. LDER’s full lineup reaches IP67 waterproof rating — using it in the rain is no problem, and even short-term submersion does not affect function. However, we recommend drying and wiping after use to keep the product clean.

How long is the warranty? What does “Old-for-New” mean?

2-year warranty from the date of purchase. Non-human damage within the warranty scope is eligible for free replacement. The “2-Year Old-for-New” service means: if a product develops a non-human fault within the warranty period, it can be directly replaced with a brand-new product — no repair wait needed. Products past the warranty period can also enjoy the Old-for-New service (price difference must be paid).

What do “1 Receiver + 1 Transmitter”, “2 Receivers + 1 Transmitter” mean?

“Receiver” refers to the receiver device; “Transmitter” refers to the remote control (radio device). 1 Receiver + 1 Transmitter = Standard Kit (1 transmitter + 1 receiver); 2 Receivers + 1 Transmitter = 2 receivers + 1 transmitter, suited to controlling one piece of equipment from two locations; 1 Receiver + 2 Transmitters = 1 receiver + 2 transmitters, suited to shared use across multiple shifts or dedicated-equipment use.
